5730软灯条

5730软灯条60灯 10mm

Model NO	LGE5730-WN60-10mm
Product Name	SMD5730 60LEDS/M LED strips
PCB Width	10MM
LED Qty/m	60leds/m 5730
PCB materials	3Oz Double-sided coated pure copper
Voltage(V)	12V DC / 24V DC
Rated Power(W)	18W/M, 90W/5M
Luminous(lm/m)	97LM/W
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20(IP65/IP67/IP68 option)
View Angle	120
Product Size(mm)	10*5000mm
Package(m/rol)	5M/roll
Working Temperature(ºC)	-80

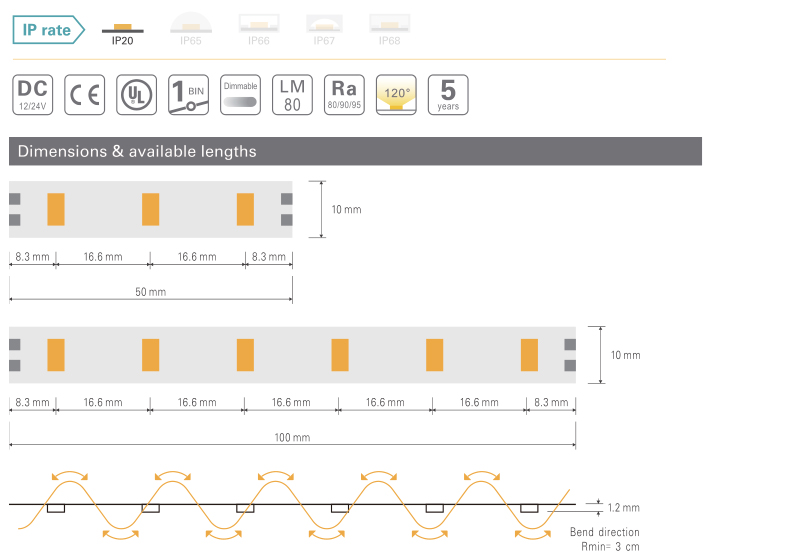

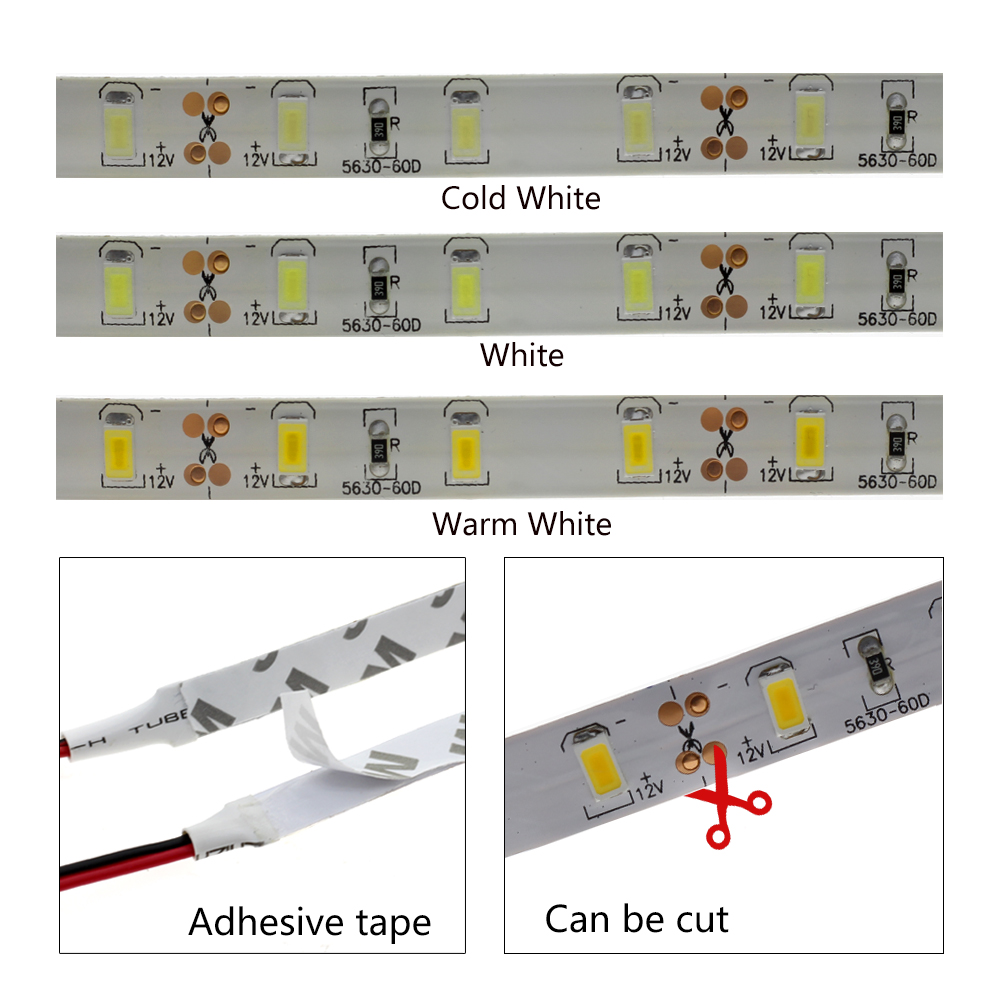

Cutting Unit	12V-3LEDs（50mm) / 24V-6LEDS（100mm）
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	CE,Rohs,FCC.
Warranty	2-5 Years
